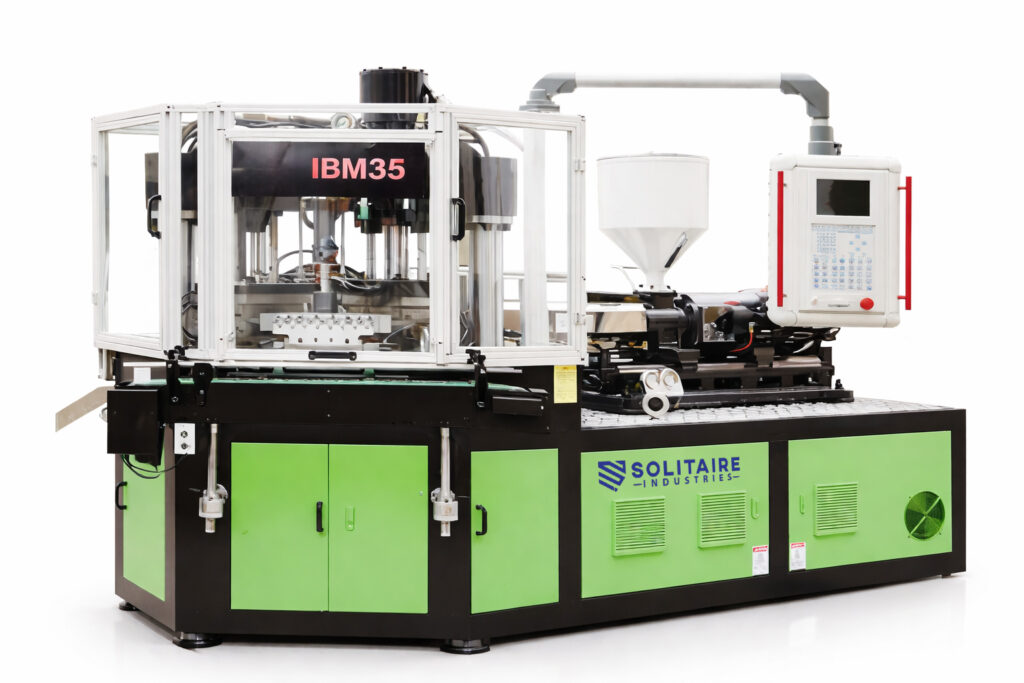

IBM35 Injection Blow Molding Machine – Precision Plastic Packaging Solution
The IBM35 Injection Blow Molding Machine is a high-performance industrial solution engineered for the precise manufacturing of plastic containers with superior dimensional accuracy and surface finish. Designed to meet the growing demands of the packaging industry, this machine combines injection molding and blow molding processes into a single, seamless operation, ensuring consistent quality and reduced material waste.
Built with a robust and vibration-resistant structure, the IBM35 delivers stable operation even during continuous high-speed production. Its advanced control system allows operators to accurately regulate injection pressure, temperature, and cycle timing, resulting in uniform wall thickness and excellent bottle clarity. The machine supports a wide range of thermoplastic materials such as PE, PP, and PET, making it suitable for producing pharmaceutical bottles, cosmetic containers, food packaging, and industrial components.
IBM35 INJECTION BLOW MOLDING MACHINE– Key Features
- High-precision injection blow molding for consistent part quality.
- Energy-efficient servo-driven hydraulic system.
- Rapid cycle times for increased production output.
- User-friendly touchscreen control panel with easy programming.
- Modular design for flexible tooling changes.
- Automatic mold closing and ejection systems.
- Adjustable injection parameters for diverse material use.
- Robust construction for long-term industrial use.
- Integrated safety guards and interlocks.
- Precise temperature control for uniform material flow.
- Low maintenance design with easy access service points.
- Compatible with a wide range of polymers (e.g., PE, PP, PET).
| NO. | Item | Unit | Data | NO. | Item | Unit | Data | NO. | Item | Unit | Data |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Dia. of screw | mm | 40 | 8 | Max. platen size | mm | 420×340 | 15 | Cooling water consumption | m³/hr | 3 |
| 2 | Injection weight | g | 176 | 9 | Min. mold thickness | mm | 180 | 16 | Dimension of machine | mm | 3400×1200×2200 |
| 3 | Barrel heating power | KW | 7.2 | 10 | Motor power | KW | 16 | 17 | Machine weight | T | 4.0 |
| 4 | Electric heating control area | qty | 3 | 11 | Heating power of mould | KW | 2.8 | 18 | Volume of formable product | ml | 2–1000 |
| 5 | Clamping force of injection mold | kN | 350 | 12 | System pressure | MPa | 14 | 19 | Height of formable product | mm | ≤220 |
| 6 | Clamping force of blow mold | kN | 40 | 13 | Pressure of compressed air | MPa | ≥1.0 | 20 | Dia. of formable product | mm | ≤80 |
| 7 | Opening stroke of mold platen | mm | 120 | 14 | Displacement of compressed air | m³/min | ≥0.8 | 21 | Total power | KW | 25 |
Typical Products for Injection Blow Molding
Solitaire Industries – Precision, Performance & Trust
Technical Expertise
Backed by skilled engineers, we deliver precision-driven Injection Blow Molding solutions built for performance and reliability.
professional team
A team of experienced professionals committed to quality, innovation, and customer satisfaction.
Safety is top priority
Built with safety-focused design to protect operators and ensure smooth, secure production.
large scale
With robust production facilities and skilled manpower, we handle large-scale manufacturing demands while ensuring accuracy, durability, and industry compliance.
FAQ Of Customer
The IBM35 is used to manufacture hollow plastic products such as bottles, containers, and medical packaging by combining injection and blow molding in one efficient process.
It can process a variety of thermoplastics including PE (Polyethylene), PP (Polypropylene), PET (Polyethylene Terephthalate), and other compatible resins.
Production capacity varies based on bottle size, mold configuration, and cycle time, but the machine is designed for high-speed industrial output with minimal downtime.
It includes safety guards, emergency stop systems, and interlocks to ensure operator safety during production.
Routine maintenance includes lubrication, inspection of wear parts, and regular cleaning of molds and heating zones to ensure optimal performance.
